Among all GD&T controls, Profile of a Line is one of the most effective ways to communicate shape requirements. Rather than tolerancing a contour point by point, it creates a continuous tolerance zone around the theoretically exact profile, ensuring that the entire cross-sectional geometry performs as intended.

Want to shrink your tolerance stack without tightening a tolerance?

When engineers see variation piling up in a tolerance stack, the first instinct is often to tighten dimensions.

Unfortunately, tighter tolerances usually mean higher manufacturing costs, increased inspection requirements, and more rejected parts.

But what if the real problem isn't the tolerance value? What if it's how the geometry is being controlled?

Consider a contour defined by a series of coordinate dimensions. Each dimension carries its own tolerance, creating multiple opportunities for variation to accumulate throughout the feature.

The result is often a drawing that's difficult to manufacture, difficult to inspect, and harder than necessary to interpret.

This is where Profile of a Line becomes a powerful GD&T tool.

What is Line Profile?

Line Profile, or Profile of a Line, is a GD&T control that defines how much a two-dimensional cross-sectional contour may vary from its true (theoretically exact) profile.

It establishes a uniform tolerance zone that follows the nominal shape, requiring every point along the cross section to fall within that boundary.

Line Profile controls the shape of the entire contour, making it an effective way to communicate design intent for functional curves and complex geometry.

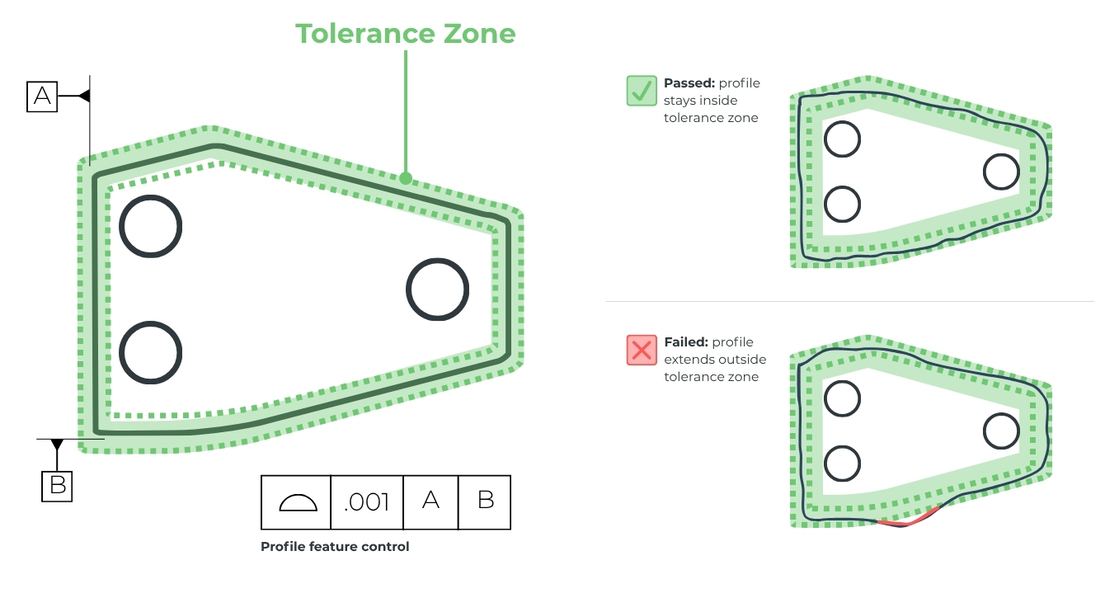

Tolerance Zone vs. Individual Points

Rather than controlling individual points along a cross-sectional contour, Line Profile establishes a tolerance zone around the entire theoretical profile.

 Every point along that cross section must fall within the specified zone, giving engineering, manufacturing, and quality a common definition of what an acceptable part looks like.

The benefit isn't simply a cleaner drawing.

Profile often allows engineers to communicate functional design intent more directly while reducing the number of dimensions required to define a feature.

In the right application, a single profile callout can replace multiple linear dimensions and their associated tolerances. That means:

✅ Better control of contour geometry

✅ Reduced tolerance stack complexity

✅ Clearer communication between design, manufacturing, and inspection

✅ More efficient CMM and quality inspections

✅ Drawings that are easier to understand and use

The next time you find yourself adding more dimensions to control a contour, take a step back and ask:

Am I controlling points, or am I controlling the shape that actually matters?

The answer may lead you to Profile.

Final thoughts

Profile of a Line doesn't make a tolerance tighter. It makes design intent clearer. And clear design intent is often the fastest path to reducing variation, lead time, scrap, and overall costs.
