If nothing in the real world actually references that angle, don’t put a tolerance on it.

Most angularity problems start there — not with misunderstanding the symbol, not with sloppy machining — but with an angle that exists on the drawing and nowhere else.

Angularity feels precise. It feels intentional. It feels like the right answer when a surface “needs to be angled.” And sometimes it is. But angularity only works when the angle is being enforced by something real: a mating surface, a fixture, gravity, or a constraint that actually removes rotational freedom.

When it isn’t, angularity becomes one of the easiest ways to stack variation without realizing it.

What angularity controls (and what it doesn't)

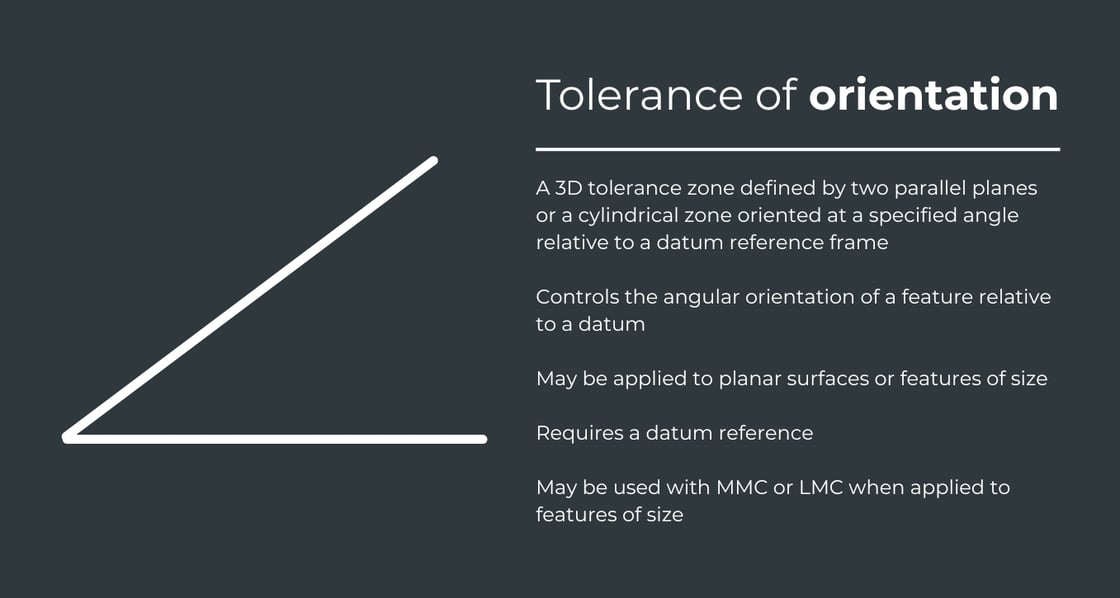

At its core, angularity controls orientation. That’s it. It limits how much a surface, axis, or center plane is allowed to tilt relative to a datum reference frame, at a basic angle other than 90 degrees. It doesn’t locate the feature. It doesn’t size it. It doesn’t even tell manufacturing how to hold the part. It just says, “once you’ve established these datums, this feature can only lean so far.”

That last part matters more than most people expect.

Because angularity assumes that the datum reference frame (DRF) actually represents how the part is constrained in the real world. If it doesn’t, the tolerance may be inspectable and technically correct — and still completely miss the design intent.

This usually shows up when an angled feature is important functionally, but the assembly never truly locks that angle. The drawing says “12° ± nothing,” but the assembly says “close enough, then clamp it.” That gap between those two realities is where problems start.

Real Life Example

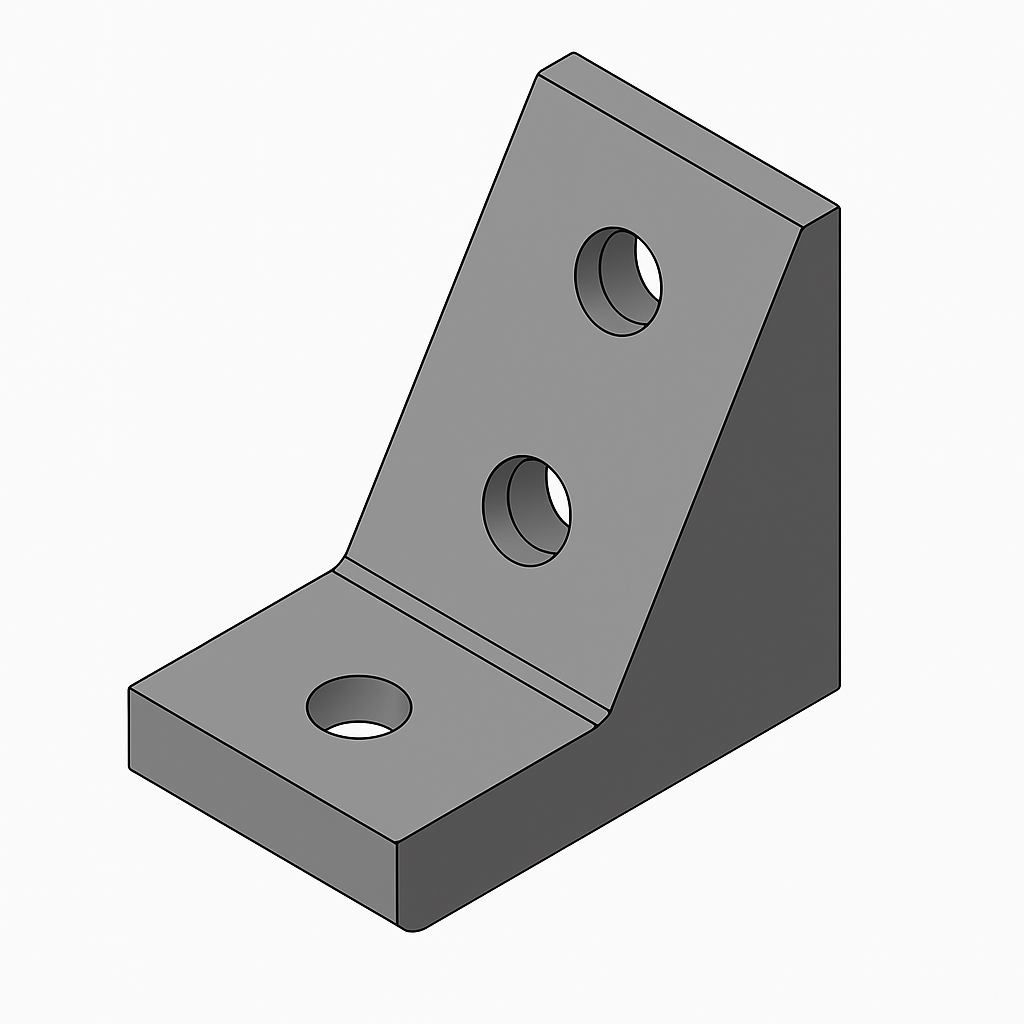

An engineer has a bracket with an angled mounting face. That face mates to something else at an angle, so angularity feels like the obvious choice. The primary datum is a nice, flat base. The angular face gets a tight angularity tolerance relative to that base. Clean drawing. Clear callout. Everyone feels good about it.

Manufacturing fixtures the part off the base and a perpendicular wall, machines the angled face in a single setup, and inspection checks angularity relative to the base. Everything passes.

Then the bracket goes into the assembly.

And that angled face isn’t actually constrained by the base at all.

In the assembly, the bracket is pulled into position by fasteners. There’s clearance in the holes. There’s compliance in the mating part. The angled face makes contact, but nothing stops the part from rotating slightly before it’s clamped. That rotation is small — well within the angularity tolerance — but it shifts the functional contact area enough to cause uneven loading, fastener issues, or long‑term wear.

• Inspection says the part is perfect.

• Assembly says it’s “kind of weird.”

• Field performance says something’s wrong.

Nothing is technically out of tolerance. But the angle you thought you were controlling was never actually locked in place.

The hidden assumption baked into angularity

This is where angularity tends to bite people. It’s not that the tolerance is wrong — it’s that the datum relationship isn’t real.

Angularity assumes a rigid relationship between the datum and the controlled feature. If the assembly allows rotation between those two things, angularity doesn’t protect you. It just limits how much the feature can tilt relative to an abstract coordinate system.

That’s also why angularity stacks so easily with other tolerances without anyone noticing. Flatness in the datum, parallelism in secondary features, clearance in fasteners, slight fixture variation — none of those look scary on their own. But together, they add up to rotation. And rotation is exactly what angularity is supposed to prevent.

Except it can’t, if nothing is actually preventing it.

A more useful way to think about angularity

A useful way to think about angularity is to stop asking, “What angle do I want?” and start asking, “What physically stops this part from rotating?”

• If the answer is “a mating surface,” that surface probably needs to be part of your datum scheme.
• If the answer is “a fixture during machining,” but not during assembly, that’s a red flag.
• If the answer is “the bolts,” then you’re relying on friction and preload — not geometry — to hold orientation.

In a lot of those cases, engineers get better results by controlling the interface instead of the angle. Profile often does a better job than angularity when multiple surfaces need to work together. Sometimes letting functional contact define orientation is more robust than trying to lock it down on the drawing.

Angularity isn’t wrong. It’s just unforgiving.

A quick gut check catches most issues early: would a machinist ever fixture this part in a way that actually establishes that angle from the datum I’m calling out? Not “could they inspect it,” but “would they naturally hold it that way because it makes sense.”

If the answer is no, the tolerance may still be legal — but it’s probably not doing what you think it’s doing.

This is why angularity problems tend to show up late. Parts pass inspection. Assemblies mostly work. Issues surface as inconsistency, wear, or unexplained sensitivity instead of obvious scrap. By the time anyone looks at the drawing again, the tolerance stack is already baked in.

If you want angularity to work for you instead of against you, the datum strategy has to mirror reality. When the DRF reflects how the part actually loses degrees of freedom in the assembly, angularity behaves exactly the way engineers expect it to.

Final thoughts

If you’re staring at an angled feature and wondering whether angularity is really the right call, a quick design conversation can save a lot of downstream frustration. Feel free to reply directly to this email and we’ll connect you with one of our manufacturing engineers.
